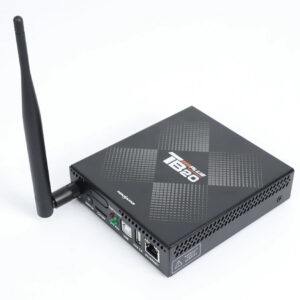

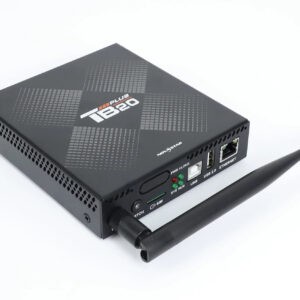

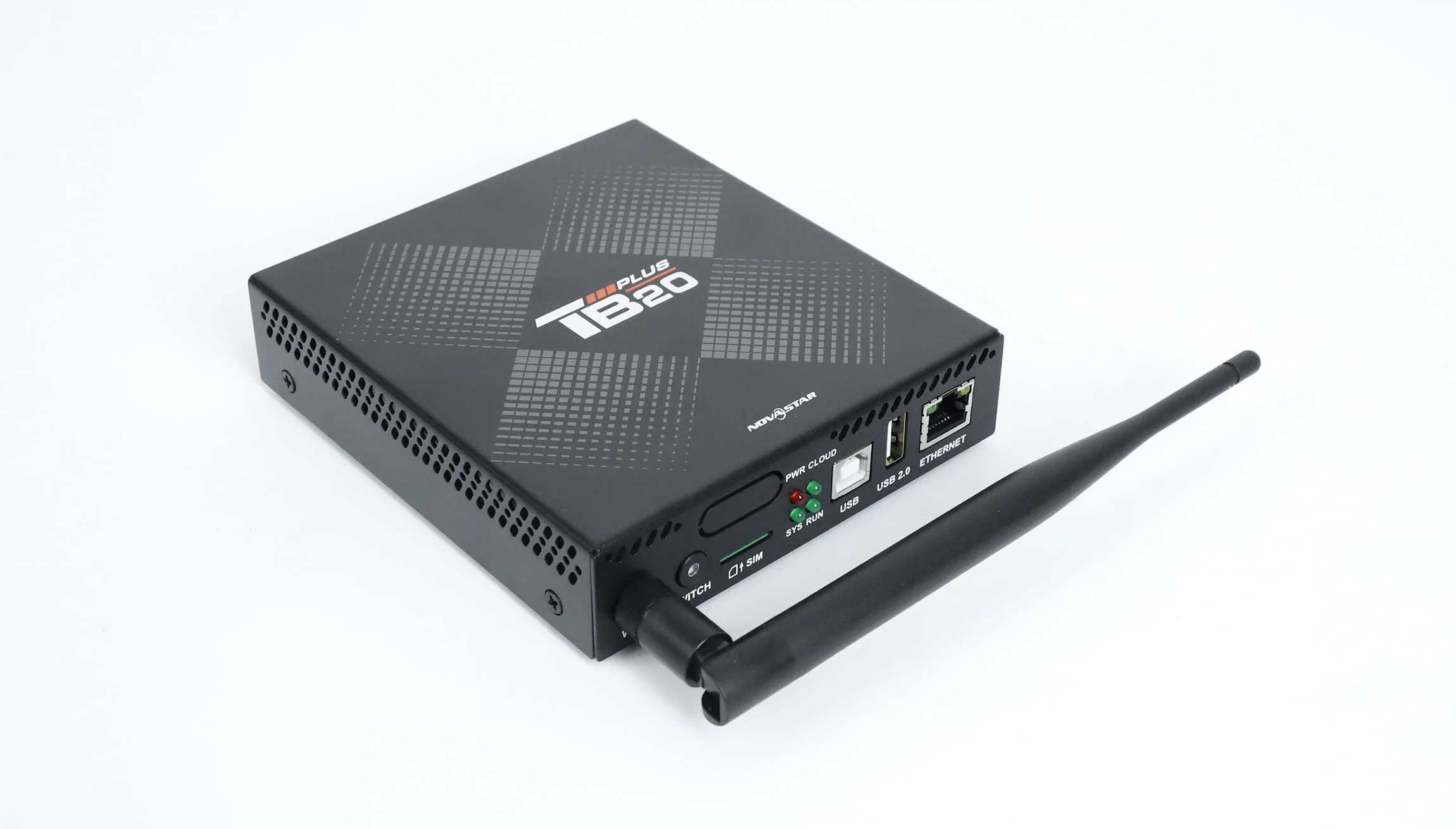

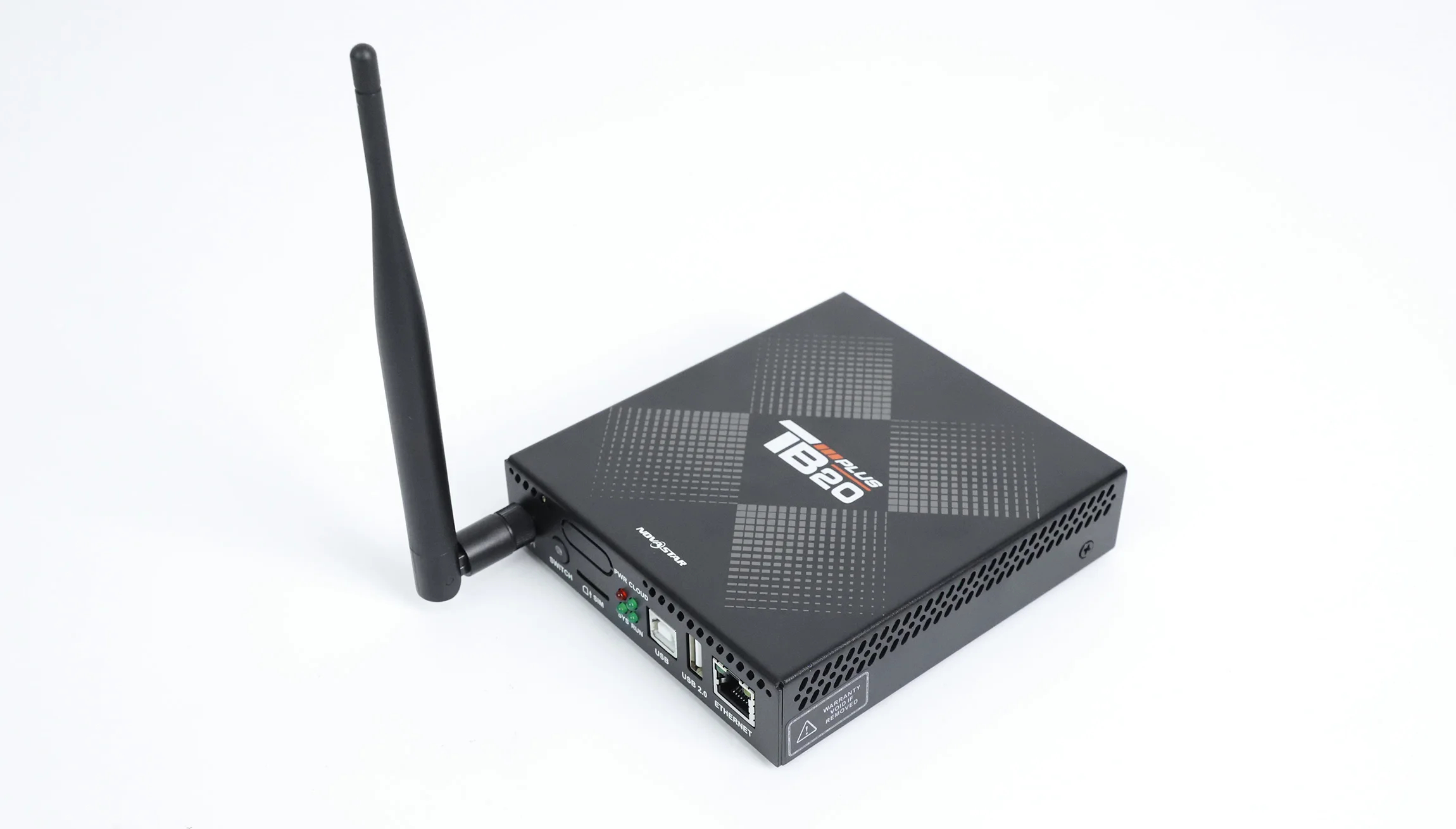

Novastar TB20 Plus Multimedia Playback Box USB Port WiFi Controller HUB75 Full Color Module LED Display Screen Video Processor

$232.00

SKU: 3256810305301510 Category: Uncategorized

Brand Name : OEING
High-concerned chemical : None
Origin : Mainland China
Tube Chip Color : Full Color
Model Number : TB20 Plus
Maximum power consumption : 15 W
Internal storage : 32 GB
Operating Humidity : 0% RH to 80% RH, non-condensing
Storage Temperature : -20 to 70°C

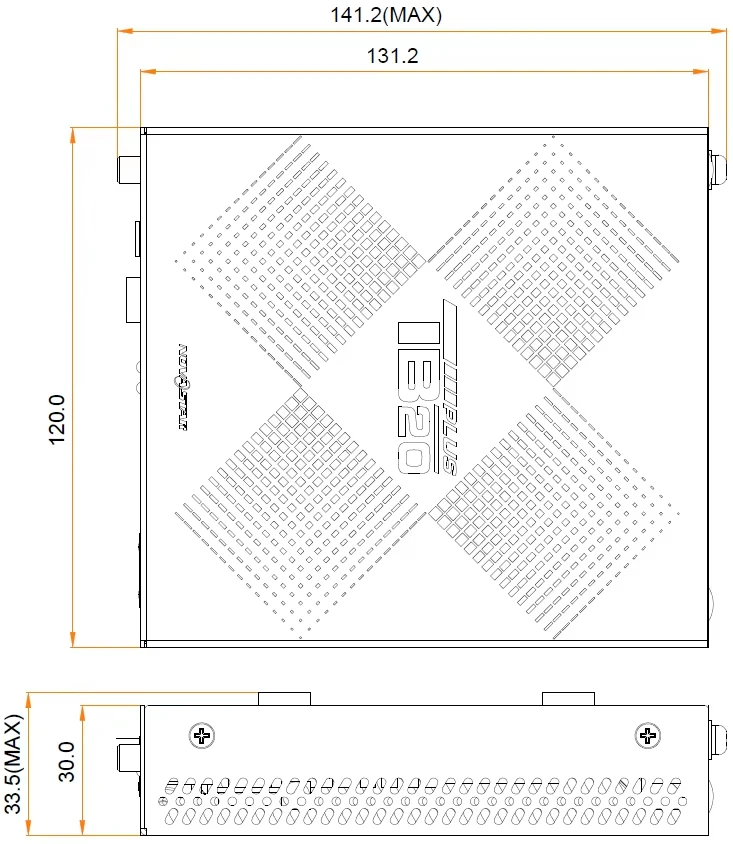

Packing Dimensions : 335 mm 190 mm 62 mm
IP Rating : IP20
Loading capacity : 650,000 pixels
Certification : CE, RoHS, FCC, IC, FCC ID, IC ID, UKCA, CCC, NBTC
Input voltage : DC 5 V~12V

Introduction

The TB20 Plus is a new generation of multimedia player designed for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with the superior cloud-based publishing and monitoring platforms, the TB20 Plus enables users to manage LED displays from an Internet-connected device anywhere, anytime.

             The TB20 Plus supports synchronous and asynchronous modes and can play content from a USB drive, satisfying various playback demands. Multiple protection measures such as terminal authentication and player verification are taken to keep the playback secure.

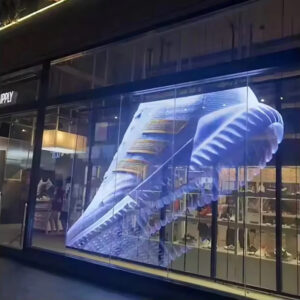

             Thanks to its reliability, ease of use, and intelligent control, the TB20 Plus becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, retail store displays, door head displays, shelf displays, and much more.

Functionality

                    All-round control plans
− Enables users to publish content and control screens from a computer, mobile phone, or tablet.
− Allows users to publish content and control screens from anywhere, anytime.
− Allows users to monitor screens from anywhere, anytime.



                    Wi-Fi AP and Wi-Fi Sta can be turned on at the same time
− Wi-Fi AP
User terminal devices can be connected to the built-in Wi-Fi hotspot of the TB20 Plus. The default SSID is “AP+Last 8 digits of SN” and the default password is printed on the SSID label.
− Wi-Fi AP+Wi-Fi Sta
Users can connect the TB20 Plus to a Wi-Fi network and turn on the Wi-Fi hotspot at the same time.



                    Ultra-long-screen solution playback



                    Synchronous and asynchronous modes
− In asynchronous mode, the internal video source is used.
− In asynchronous mode, HDMI is used as the video source.



                    Synchronous playback across multiple screens
Enabling synchronous playback halves the decoding capability of the device.
− NTP time synchronization
− GPS time synchronization The specified 4G module must be installed.
− RF time synchronization The specified RF module must be installed.

                    Support for 4G modules
− The TB20 Plus ships without a 4G module. Users have to purchase 4G modules separately if needed.
− Network connection priority: Wired network > Wi-Fi network > 4G network

Performance

                    Powerful processing capacity
− Quad-core ARM A53 processor @1.4GHz
− Support for hardware decoding of 4K videos
− 2 GB of RAM
− 32 GB of internal storage

                    Flawless playback
Support for playback of 1x 4K, 3x 1080p, 8x 720p, 16x 480p, or 20x 360p videos

Control

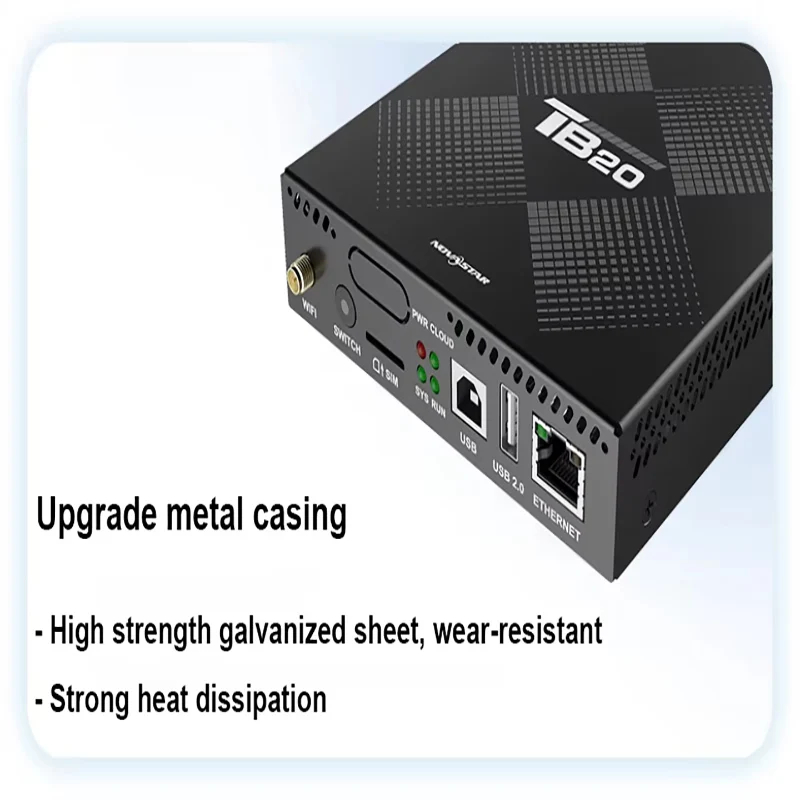

                    1x USB 2.0 Type A port
Allows for USB playback, firmware upgrade and storage expansion.

                    1x USB Type B port
Connects to the control computer for content publishing and screen control.

                    1x Fast Ethernet port
Connects to the control computer, or connects to a LAN or public network for content publishing and screen control.

Input and Output

                    Loading capacity up to 650,000 pixels
Maximum width: 2048 pixels, maximum height: 2048 pixels

                    Maximum width of an ultra-long screen: 8192 pixels, maximum height of an ultra-long screen: 2048 pixels maximum loading capacity per Ethernet port: 650,000 pixels

                    1x Gigabit Ethernet output port

                    1x Stereo audio output connector

                   The audio sample rate is fixed at 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.

                    1x HDMI 1.3 input connector
In synchronous mode, this connector is used as the video source which can be scaled to fit the entire screen automatically.
